Product details
Important parameters
- Housing
- PBT
- Color
- Black
- Terminal form
- DIP
- Weight
- 1g
- Oscillation Frequency
- 4000Hz
- Operating Voltage
- 1-25V
- Rated Voltage
- 5V
- Current Consumption(Max.)(
- 3mA
- Sound Pressure Level ( Min.)
- 85dB Min
- Tone/Pulse Rate
- /
- Operating Temperature
- -20 ~ +70℃
- Storage Temperature
- -30 ~ +80℃
- Wave soldering conditions
- 245 ºC within 5 sec.
- Manual soldering conditions
- 350 ºC within 5 sec.

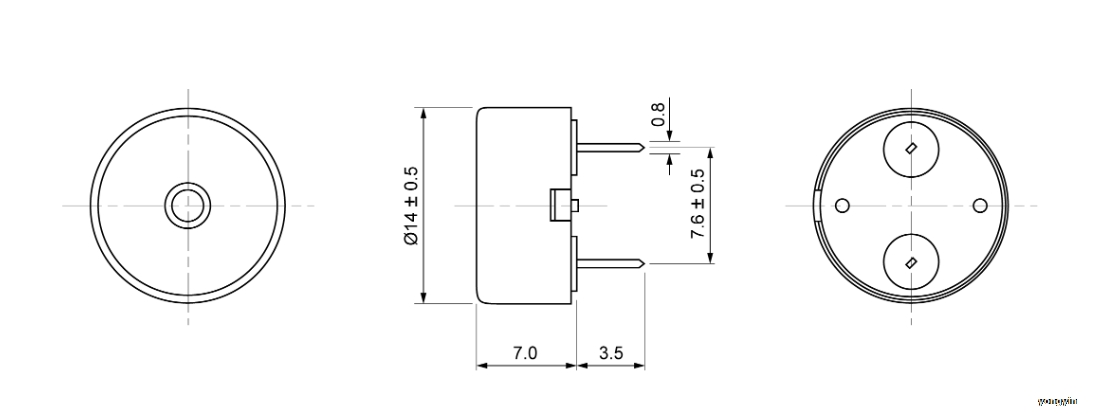

- Size
- 14X7mm
