Product details
Important parameters
- Housing
- LCP
- Color
- Black
- Terminal form
- SMD
- Weight
- 2g
- Oscillation Frequency
- 2731Hz/4000Hz
- Operating Voltage
- 2-5V
- Rated Voltage
- 3V
- Current Consumption(Max.)(
- 70mA
- Sound Pressure Level ( Min.)
- 80dB Min
- Tone/Pulse Rate
- /
- Operating Temperature
- -20 ~ +70℃
- Storage Temperature
- -30 ~ +80℃
- Wave soldering conditions
- 245 ºC within 5 sec.
- Manual soldering conditions
- 350 ºC within 5 sec.

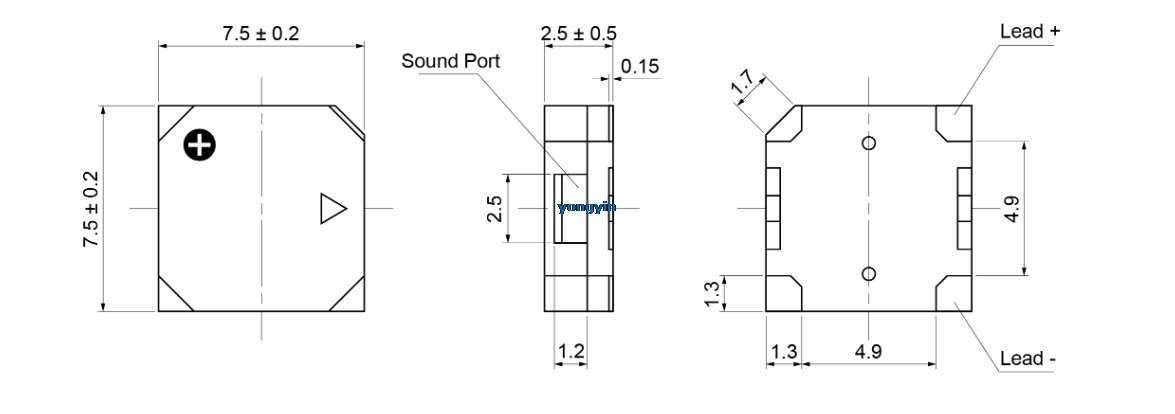

- Size
- 7.5X7.5X2.5 mm
